LPT/UFD™ - Fiberized Spray Applicator

Lamiated Plate Technology with Uniform Fiber Deposition - some companies say that they innovate, but only ITW Dynatec has the patents to prove it. (5,902,540 - 5,882,573 - 5,904,298)

Overview

Don't Be Fooled
ITW Dynatec® has been the leading innovator in the hotmelt application industry for years. It should come as no surprise, then, that only our Fiberized Technology can meet any demand your application has.

Unmatched Technology, Unmatched Results
Thanks to our patented Laminated Plate Technology, no competitor can match the results of ITW Dynatec's UFD fiberized spray applicators. The stainless steel laminated plate construction is the most durable nozzle construction on the market, and the patented nozzle configuration is the only configuration that allows the production of the Omega™ adhesive fiber pattern.

Use the Best, Save the Most
This patented Omega™ fiber pattern provides between 20 and 60% adhesive savings over spiral spray or melt-blown techniques due to larger, more controlled adhesive filament. UFD™ fiberized spray technology from ITW Dynatec is also less expensive in the long run over conventional coating and laminating techniques.

Features

  • Up to 50% Adhesive Savings
  • Better Bond Strength With Less Adhesive
  • Long Life Stainless Steel Construction
  • Precise Control of Adhesive Fiber Size and Placement


The Dynatec Difference


Patented Technology

Many companies say that they are innovators by providing techniques for laying down fiberized adhesive (spiral swirl and random fiber), but only ITW Dynatec has the patents to prove it (5,902,540 - 5,882,573 - 5,904,298).

ITW Dynatec invented Laminated Plate Technology, which is used in all ITW Dynatec UFD nozzles and is the most effective way to lay down fiberized adhesive. The unique and patented configuration of the laser cut, stainless steel-laminated plates is the only configuration on the market that allows the production of the Omega™ adhesive pattern and the production of the most effective Random Fiber pattern available.

This new product spawned many imitators, but none have been able to match the performance provided by ITW Dynatec's Laminated Plate Technology. When you use UFD Fiberized Spray applicators from ITW Dynatec, you can be certain that you are using the best product on the market.

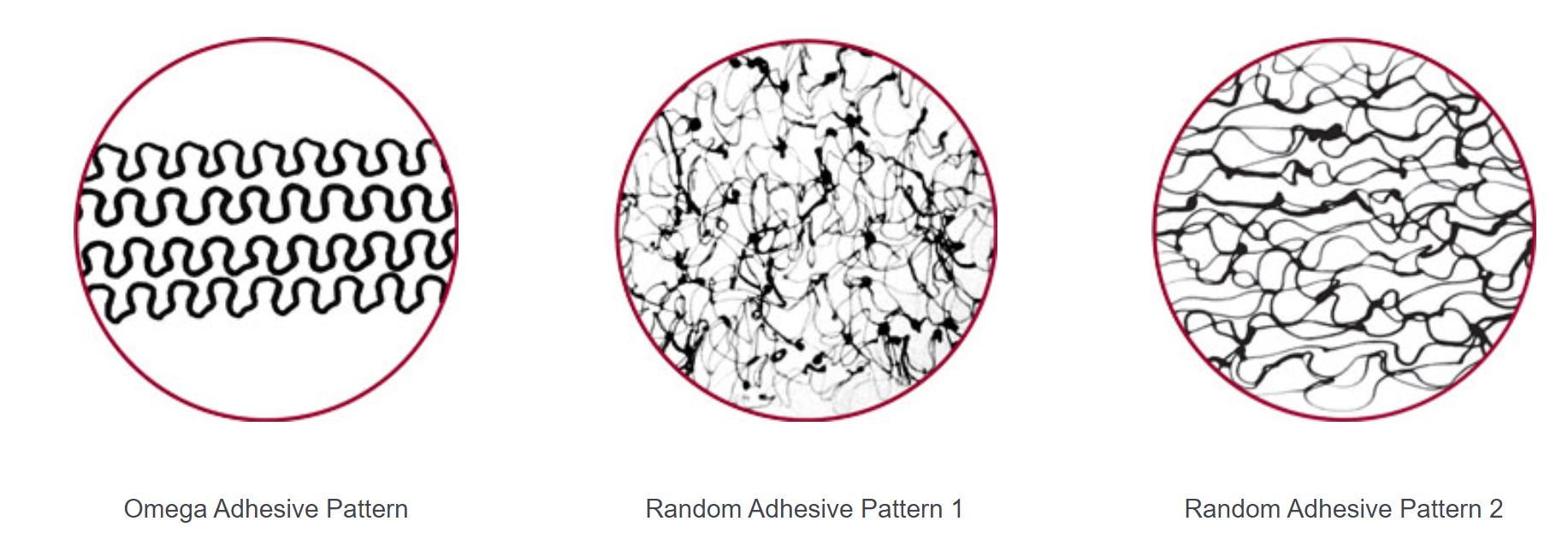

Adhesive Patterns





UFD 0501

UFD 0502

UFD 0753

UFD 1004

UFD 1506

Max. Nr of moduls

1

2

3

4

6

Temperature range

38ºC - 218ºC (100ºF t-425ºF)

38ºC - 218ºC (100ºF t-425ºF)

38ºC - 218ºC (100ºF t-425ºF)

38ºC - 218ºC (100ºF t-425ºF)

38ºC - 218ºC (100ºF t-425ºF)

Heat up time

15min (cold start)

5 perc (module change)

15min (cold start)

5 perc (module change)

15min (cold start)

5 perc (module change)

15min (cold start)

5 perc (module change)

15min (cold start)

5 perc (module change)

Adhesive viscosity

100 - 30,000 cps

100 - 30,000 cps

100 - 30,000 cps

100 - 30,000 cps

100 - 30,000 cps

Max adhesive pressure

68 bar (1000 psi

68 bar (1000 psi

68 bar (1000 psi

68 bar (1000 psi

68 bar (1000 psi

Air pressure range

4.1 - 6.9 bar (60 - 100 psi)

4.1 - 6.9 bar (60 - 100 psi)

4.1 - 6.9 bar (60 - 100 psi)

4.1 - 6.9 bar (60 - 100 psi)

4.1 - 6.9 bar (60 - 100 psi)

Electrical service standard

200-240 VAC 1 Phase 50-60Hz

200-240 VAC 1 Phase50-60Hz

200-240 VAC 1 Phase50-60Hz

200-240 VAC 1 Phase50-60Hz

200-240 VAC 1 Phase50-60Hz

Spacing Between Nozzle Centers

---

25.2 mm (1 in)

25.2 mm (1 in)

25.2 mm (1 in)

25.2 mm (1 in)



Height(H)

261 mm (10.28 in)

261 mm (10.28 in)

261 mm (10.28 in)

261 mm (10.28 in)

261 mm (10.28 in)

Depth(D)

146.3 mm (5.76 in)

146.3 mm (5.76 in)

146.3 mm (5.76 in)

146.3 mm (5.76 in)

146.3 mm (5.76 in)

width(W)

50 mm (1.97 in)

50 mm (1.97 in)

75 mm (2.95 in)

100 mm (3.94 in)

150 mm (5.91 in)
